Model: PC-01

Model: PC-01

Compartir

Model: PC-01

  • detalle
  • Parámetros


Introduction


In order to dissipate the electrostaticcharge from various equipment, we offer a wide range of static grounding clamps with cables, which are all ATEX approved, certification:  认证.jpgEx II 2 G T6



Specifications


We make a series of bronze pipe clamps which can beadjusted from

1” to 3”.

Model

Size

Pipe Range

Weight

PC-02

1”

33mm to 35mm

50 g

PC-03

1 1/2”

47mm to 50mm

150 g

PC-04

2”

59mm to 62mm

200 g

PC-05

2 1/2”

75mm to 78mm

260 g

PC-06

3”

88mm to 92mm

280 g



Features & Benefits


◆ The rugged design provides a positive connection topenetrate paint and rust.

◆ Equipotential connection for loading armsand pipes.

◆ Can be produced tospecific sizes.

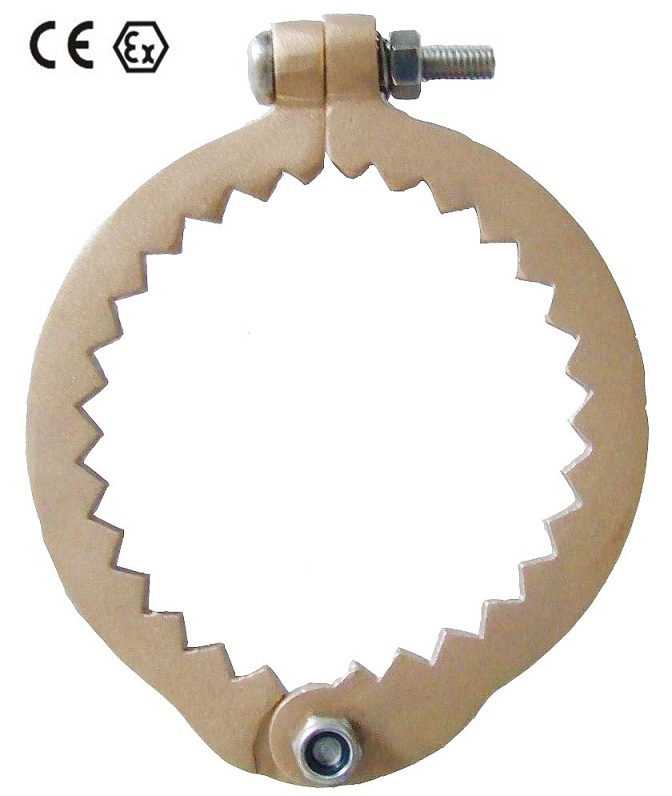

Illustration






Certification





Name
Pipe Clamps
Model
PC-01
